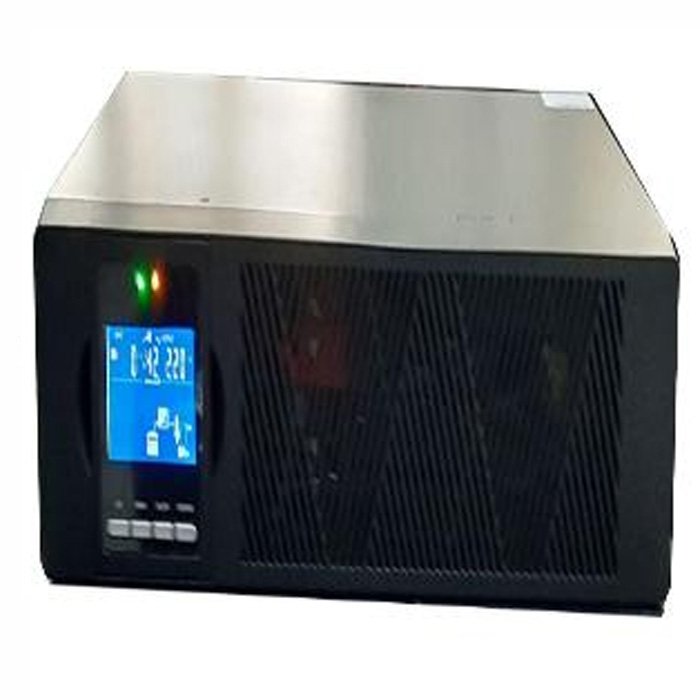

UPS ICA RN1100C (1000VA_900W) (TKDN)

UPS ICA RN1100C (1000VA_900W) (TKDN)

Spesifikasi :
Type : UPS RN1100C
Capacity : 1000 VA / 900 W

INPUT
Rated voltage : 200 / 208 / 220 / 230 / 240Vac
Voltage range : 110 ~ 300Vac (depend on load percentage)
Frequency range : 40 ~ 70Hz (auto detect)
Power factor : ?0.99
Bypass voltage range : Bypass high voltage point
Setting in LCD from 230Vac to 264Vac (Default: 264Vac)
Bypass low voltage point
Setting in LCD from 170Vac to 220Vac (Default: 170Vac)
Generator input : Support

BATTERY
Battery voltage : 24Vdc
Typical recharge time : 4 hours (to 90% of full capacity)
Backup time : Estimated remaining time displayed on the LCD
Charging current (max.) : 1A

OUTPUT
Output voltage : 200 / 208 / 220 / 230 / 240Vac
Power factor : 0.9
Voltage regulation : ±1%
Frequency line mode : 45 ~ 55Hz (for 50Hz) or 55 ~ 65Hz (for 60Hz)
Frequency bat. mode : 50 / 60 (±0.01%)Hz
Crest factor : 3 : 1
Harmonic distortion (THDv) : ?3% with linear load; ?6% with non-linear load
Waveform : Pure sinewave
Efficiency (AC mode full load) : >88%

INPUT
Rated voltage : 200 / 208 / 220 / 230 / 240Vac
Voltage range : 110 ~ 300Vac (depend on load percentage)
Frequency range : 40 ~ 70Hz (auto detect)
Power factor : ?0.99
Bypass voltage range : Bypass high voltage point
Setting in LCD from 230Vac to 264Vac (Default: 264Vac)
Bypass low voltage point
Setting in LCD from 170Vac to 220Vac (Default: 170Vac)
Generator input : Support
BATTERY
Battery voltage : 24Vdc
Typical recharge time : 4 hours (to 90% of full capacity)
Backup time : Estimated remaining time displayed on the LCD
Charging current (max.) : 1A
OUTPUT
Output voltage : 200 / 208 / 220 / 230 / 240Vac
Power factor : 0.9
Voltage regulation : ±1%
Frequency line mode : 45 ~ 55Hz (for 50Hz) or 55 ~ 65Hz (for 60Hz)
Frequency bat. mode : 50 / 60 (±0.01%)Hz
Crest factor : 3 : 1
Harmonic distortion (THDv) : ?3% with linear load; ?6% with non-linear load
Waveform : Pure sinewave
Efficiency (AC mode full load) : >88%
SYSTEM
Transfer time : Utility to Battery: 0ms; Utility to Bypass: <4ms
Overload (Line Mode) : Load ?110%: last 10min; ?130%: last 1min; ?150%: last 5S; >150% turn to bypass mode (1 ~ 3kvA)
Load ?110%: last 60min; ?125%: last 10min; ?150%: last 1S; >150% turn to bypass mode (6 ~ 10kvA)
Short circuit : Hold whole system
Overheat : Line mode: Switch to Bypass; Backup Mode: Shutdown UPS immediately
Battery low : Alarm and switch off
EPO (optional) : Shutdown UPS immediately
Audible & visual alarm : Line failure; Battery Low, Overload, System Fault
Coomunication interface : USB (or RS232), SNMP card / relay card (optional)

ENVIRONMENTAL
Operating temperature : 0 ~ 40º C
Storage temperature : -25 ~ 55ºC
Humidity range : 20 ~ 90% (non-condensing)
Altitude : <1500m
Noise level : <50dB at 1 meter

PHYSICAL
Dimension W x H x D (mm) : 440 x 86.5 x 325 (2U)
Net weight (kg) : 11.5 Kg
Gross weight (kg) : 13.9 Kg

STANDARDS
Safety : IEC/EN62040-1, IEC/EN60950-1
EMC : IEC/EN62040-2, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8

BATTERY PACK for 6~10kVA
Voltage : +/-120Vdc
Type & number : 20 x 12V/7Ah SLA Battery
Dimensions W x H x D (mm) : 440 x 130 x 720 (3U)
Net weight (kg) : 57 Kg
Gross weight (kg) : 62 Kg
