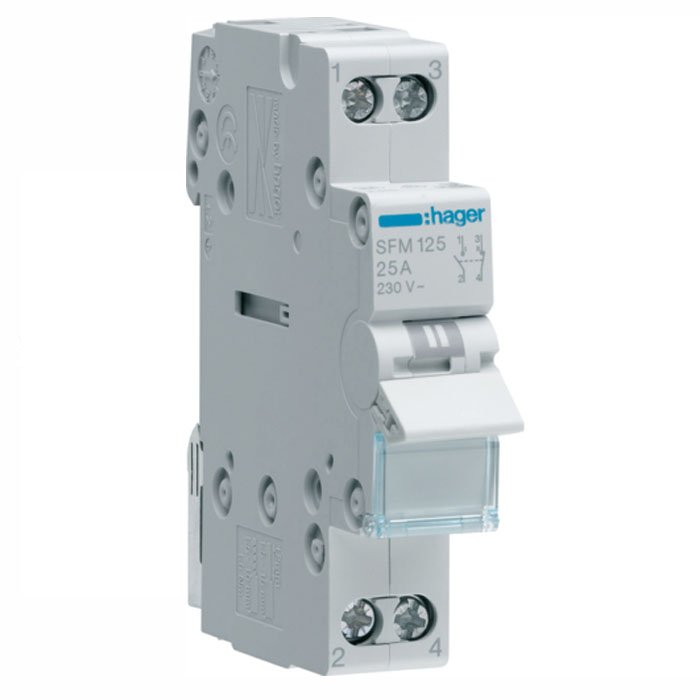

CHANGEOVER HAGER 1P 25A SFM125

Technical Characteristics

-Architecture
Type of order : Changeover switch
Number of poles : 1 P
Type of pole : 1 P

-Main electrical features
Rated operational voltage Ue : 230 V
Frequency : 50/60 Hz

-Voltage
Rated insulation voltage : 440 V
Type of voltage input 1 : AC
Rated impulse withstand voltage : 4000 V

-Electric current
Rated operational current in AC21category B : 25 A
Acceptable current rating with AC22 category A : 25 A
Rated current : 25 A
Rated short-time withstand current 1s : 0,375 kA
Thermal rated current outside of housings : 25 A
Rated operational current in AC21 category A : 25 A
Acceptable current rating with AC22 category B : 25 A
Rated short-circuit making capacity Icm under 240V AC according IEC 60947-3 : 529 A

-Frequency
Frequency : 50 to 60 Hz

-Power
Total power loss under IN : 0,9 W
Power loss per pole at In : 0,9 W

-Endurance
Electrical durability at nominal load in AC21in operating cycles : 25000
Electrical durability at nominal load in AC22 in operating cycles : 25000
Number of mechanical operations : 200000

-Dimensions
Depth of installed product : 68 mm
Height of installed product : 83 mm
Width of installed product : 17,5 mm

-Installation, mounting
Tightening torque : 1,8Nm

-Connection
Connection cross-sect. flexible conductor : 1,5 / 10mm²
Connection cross-sect. rigid cable : 1,5 / 16mm²
Cage clamp position : off set
Type of connection : with screw

-Equipment
Quantity of NC contacts : 1
Quantity of NO contacts : 1

-Standards
Standard text : IEC 60947-3, IEC/EN 60669-1
European directive WEEE : concerned

-Safety
Protection index IP : IP20

-Use conditions
Operating temperature : -20 … 50 °C
Degree of pollution according to IEC 60664 / IEC 60947-2 : 2
Altitude : 2000 m
Storage/transport temperature : -40 … 80 °C
